    Industrial Tumbler Dryers

    Drying Solutions
    Drying is one of the most energy consuming processes in a laundry. So, all our solutions are designed around performance, efficiency and reduced energy consumption. We design our drying solutions for the ultimate productivity and energy-efficiency to minimize overhead costs and reduce environmental impact.
    price/request



    Industrial Tumbler Dryers specifications

    Model 3S-TD-15 / 3S-PTD-15

    • Capacity 1/18: 14.96 kg

    • Capacity 1/25: 10.77 kg

    • Volume: 269.26 dm³

    • Drum Ø: 700 mm

    • Drum Depth: 700 mm

    • Machine Dimensions (L×P×H): 1000 × 1100 × 1600 mm

    • Door Ø: 280 mm

    • Net Weight: 680 kg

    • Crated Weight: 730 kg

    • Crated Dimensions (L×P×H): 1200 × 1300 × 1700 mm

    • Motor Power (Drum): 0.55 kW (0.75 hp) – 4 pole

    • Motor Power (Ventilation): 0.25 kW (0.33 hp)

    Model 3S-TD-25 / 3S-PTD-25

    • Capacity 1/18: 25.21 kg

    • Capacity 1/25: 18.15 kg

    • Volume: 453.73 dm³

    • Drum Ø: 850 mm

    • Drum Depth: 800 mm

    • Machine Dimensions (L×P×H): 1130 × 1200 × 1705 mm

    • Door Ø: 300 mm

    • Net Weight: 890 kg

    • Crated Weight: 940 kg

    • Crated Dimensions (L×P×H): 1330 × 1400 × 1805 mm

    • Motor Power (Drum): 0.7 kW (1 hp) – 4 pole

    • Motor Power (Ventilation): 0.25 kW (0.33 hp)

    Model 3S-TD-40 / 3S-PTD-40

    • Capacity 1/18: 40.59 kg

    • Capacity 1/25: 29.22 kg

    • Volume: 730.54 dm³

    • Drum Ø: 995 mm

    • Drum Depth: 940 mm

    • Machine Dimensions (L×P×H): 1275 × 1340 × 1850 mm

    • Door Ø: 300 mm

    • Net Weight: 1220 kg

    • Crated Weight: 1320 kg

    • Crated Dimensions (L×P×H): 1475 × 1540 × 1950 mm

    • Motor Power (Drum): 1.1 kW (1.5 hp) – 4 pole

    • Motor Power (Ventilation): 0.37 kW (0.5 hp)

    Model 3S-TD-60 / 3S-PTD-60

    • Capacity 1/18: 60.18 kg

    • Capacity 1/25: 43.33 kg

    • Volume: 1083.17 dm³

    • Drum Ø: 1120 mm

    • Drum Depth: 1100 mm

    • Machine Dimensions (L×P×H): 1400 × 1500 × 1980 mm

    • Door Ø: 390 mm

    • Net Weight: 1600 kg

    • Crated Weight: 1700 kg

    • Crated Dimensions (L×P×H): 1600 × 1700 × 2080 mm

    • Motor Power (Drum): 2.2 kW (3 hp) – 6 pole

    • Motor Power (Ventilation): 0.55 kW (0.75 hp)

    Model 3S-TD-80 / 3S-PTD-80

    • Capacity 1/18: 79.84 kg

    • Capacity 1/25: 57.48 kg

    • Volume: 1437.03 dm³

    • Drum Ø: 1230 mm

    • Drum Depth: 1210 mm

    • Machine Dimensions (L×P×H): 1510 × 1610 × 2090 mm

    • Door Ø: 390 mm

    • Net Weight: 1950 kg

    • Crated Weight: 2070 kg

    • Crated Dimensions (L×P×H): 1710 × 1810 × 2190 mm

    • Motor Power (Drum): 3 kW (4 hp) – 6 pole

    • Motor Power (Ventilation): 0.7 kW (1 hp)

    Model 3S-TD-100 / 3S-PTD-100 (With Tilt)

    • Capacity 1/18: 100.49 kg

    • Capacity 1/25: 72.36 kg

    • Volume: 1808.89 dm³

    • Drum Ø: 1380 mm

    • Drum Depth: 1210 mm

    • Machine Dimensions (L×P×H): 1660 × 1610 × 2240 mm

    • Door Ø: 500 mm

    • Net Weight: 2300 kg

    • Crated Weight: 2420 kg

    • Crated Dimensions (L×P×H): 1860 × 1810 × 2340 mm

    • Motor Power (Drum): 4 kW (5.5 hp) – 6 pole

    • Motor Power (Ventilation): 1.1 kW (1.5 hp)

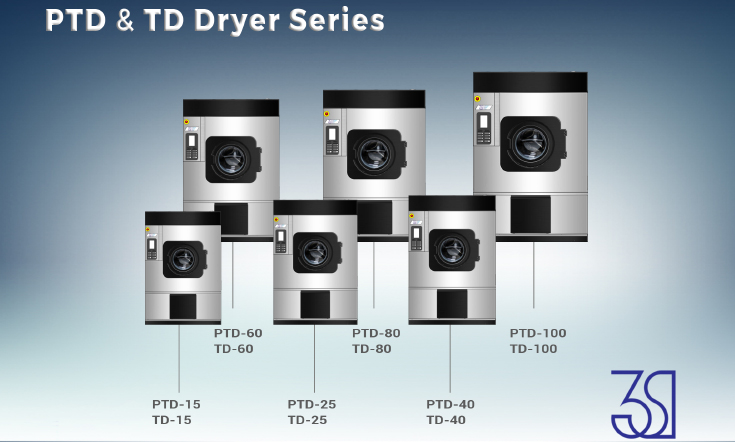

    These models come in different capacities and are designed for industrial and commercial use:

    Tumbler DryersProfessional Tumbler DryersCapacity (kg)
    ✓✓15
    ✓✓25
    ✓✓40
    ✓✓60
    ✓✓80
    ✓✓100

    These models are engineered to effectively and efficiently meet the diverse drying needs of industrial and commercial applications.
